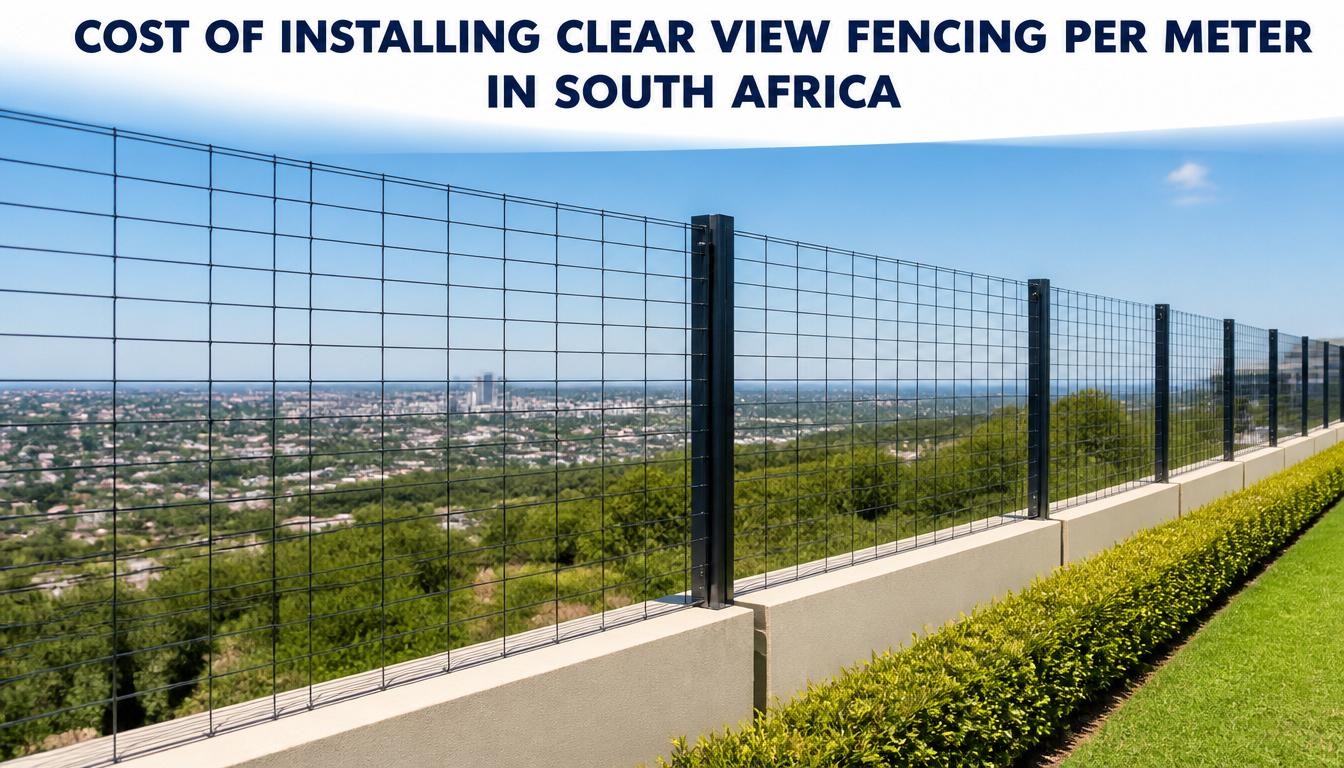

Cost of Installing Clear View Fencing Per Meter in South Africa

If you own a property in South Africa, you already know that perimeter security isn’t a luxury—it’s an absolute necessity. However, the traditional security measures of the past, like high face-brick walls, feel claustrophobic and block out daylight. Heavy steel palisade fencing, on the other hand, can end up looking like a minimum-security prison cell.

This dilemma explains why high-density anti-climb mesh—commonly known across Mzansi as Clear View (or ClearVu) fencing—has rapidly become the gold standard for securing residential homes, housing estates, commercial parks, and agricultural land. It creates a formidable physical barrier without ruining your property’s view or curb appeal.

The most critical question home and business owners ask before breaking ground is straightforward: What is the true cost of installing Clear View fencing per meter in South Africa?

Depending on whether you need a basic perimeter or a high-security anti-climb setup, the total installed cost of Clear View fencing in South Africa ranges between R1,300 and R2,200+ per linear meter.

This price covers panel materials, posts, hardware, labor, site preparation, and concrete footings.

• Materials & Hardware: Aperture density, wire thickness & height, galvanized vs. PVC coating.

• Labor & Site Preparation: Ground excavation & soil type, concrete footings & anchor posts, terrain slope & vegetation clearing.

Below is a detailed breakdown of real-world pricing dynamics, hidden installation fees, coating selections, and expert guidance to help you plan your perimeter security project effectively.

Quick Reference Price Guide: Supply vs. Fully Installed

Understanding your project budget starts with separating material-only costs (panel, post, clips, and fixings) from full turn-key installation costs (which include ground excavation, concrete footings, alignment labor, and waste removal).

Note: All prices are estimates in South African Rand (ZAR) reflecting current market averages across major metro centers like Johannesburg, Pretoria, Cape Town, and Durban. Final contractor quotes vary based on VAT inclusion, total linear distance, and site access.

4 Core Factors That Drive Your Price Per Meter

Not all Clear View panels are manufactured equally. Two fences can look nearly identical from a distance of 10 meters, yet differ in price by up to 60%. Four main technical specifications account for this price variance:

1. Aperture Size (The Grid Gap Density)

The term aperture refers to the rectangular gaps between the welded horizontal and vertical steel wires.

• Low Security (100mm x 50mm): Allows easy handholds and footholds. Suitable strictly for boundary demarcation or internal partitioning.

• Medium Security (75mm x 25mm): Difficult to climb without equipment. Ideal for residential front boundaries and corporate office parks.

• High Security / Anti-Climb & Anti-Cut (76.2mm x 12.7mm): The vertical gaps are so narrow (under 13mm) that human fingers cannot gain a grip to climb. Additionally, conventional bolt cutters cannot fit between the wires to snip them. This density requires double the raw steel during manufacturing, which makes it the most expensive option per meter.

2. Panel Height and Wire Gauge

Standard panel heights in South Africa are 1.2m, 1.8m, 2.0m, and 2.4m.

• Upgrading from a standard 1.8m panel to a 2.4m panel requires roughly 25–30% more steel per meter.

• Standard wire core thickness ranges between 3mm and 4mm. Upgrading to a heavy-duty 4mm or 5mm high-tensile wire increases structural rigidity against impact, which adds to the material costs.

3. Surface Coating & Corrosion Resistance

South Africa’s diverse climate demands proper metal coating choices. Selecting the wrong finish for your region can cause premature rust and structural failure within three years.

• Inland (Gauteng / Karoo): Pre-Galvanized / Electro-Galvanized steel is suitable for dry, inland environments.

• General Coastal / Suburbs: Hot-Dip Galvanized (HDG) steel is submerged in molten zinc after welding. This seals all raw cuts and edges, providing long-lasting rust protection inland and in general coastal environments.

• High-Humidity Coastal (<5km): Plasticized PVC Coating / Fusion Bonded polymer is bonded over galvanized steel. Essential for properties within 5 km of the ocean (e.g., Durban, Cape Town, Ballito) to withstand salt mist and high humidity. This adds roughly 15% to 25% to the raw material cost.

4. Ground Conditions and Labor Complexity

Labor and installation fees generally sit between R350 and R650 per meter. However, contractors will adjust their rates based on local conditions:

• Soft Soil vs. Solid Bedrock: Digging post holes in soft soil is straightforward. If installers hit underlying granite or shale (common in parts of Pretoria and the Western Cape), they must bring in core drills or jackhammers, which increases installation labor costs.

• Sloped Terrain: Installing stepped panels on uneven ground requires custom stepping clips, extended posts, and extra concrete per hole.

Essential Add-Ons: Pricing Security Upgrades

A bare Clear View panel acts as an excellent physical perimeter barrier, but high-risk installations often require secondary defense layers.

Real-World Cost Breakdown Scenarios

To help you calculate your budget, here are three typical installation projects in South Africa:

Scenario A: Standard Suburban Home Front Perimeter (25 Meters)

• Objective: Replace an old wooden or chain-link fence with an aesthetically pleasing boundary that works with street-facing security cameras.

• Specifications: 1.8m height, Medium Security (75mm x 25mm aperture), Hot-Dip Galvanized & Powder-Coated Black finish, complete with anti-tamper bolts.

• Material Cost: ~R1,050 / meter x 25m = R26,250

• Labor & Concrete Footings: ~R450 / meter x 25m = R11,250

• Pedestrian Gate Add-on: Single 1m-wide matching gate = R3,500

• Estimated Total Project Cost: ~R41,000 (excl. VAT)

Scenario B: Commercial Property / Estate Perimeter (100 Meters)

• Objective: Secure a commercial distribution center or gated residential community against unauthorized entry and intrusion.

• Specifications: 2.4m height, High-Security Anti-Climb (76.2mm x 12.7mm aperture), PVC coated green, fitted with top security spikes and a 6-strand electric fence topping.

• Material Cost: ~R1,350 / meter x 100m = R135,000

• Labor, Excavation & Plinths: ~R550 / meter x 100m = R55,000

• Electric Fence Integration & Energizer: = R32,000

• Estimated Total Project Cost: ~R222,000 (excl. VAT)

Clear View vs. Palisade vs. Brick Walls: How Does It Compare?

When evaluating perimeter options, property owners often weigh initial costs against visibility, strength, and long-term maintenance.

1. Clear View vs. Steel Palisade: While low-grade palisade fencing can be slightly cheaper initially, it offers less perimeter security. Intruders can easily bend palisade pales apart using hydraulic car jacks or step between wide gaps. Clear View panels eliminate lever points entirely.

2. Clear View vs. Brick/Masonry Walls: Solid brick boundary walls create hidden shadow zones where intruders can hide undetected by CCTV or security patrols. Clear View maintains complete visual lines of sight across your perimeter while resisting thermal cracking and wind damage over time.

How to Avoid Getting Scammed: Contractor Red Flags

Because demand for Clear View fencing is high across South Africa, underqualified installers often cut corners to present artificially low quotes. Keep these practical tips in mind when evaluating proposals:

Installer Warning Checklist:

• Check Hole Depth & Concrete Volume: Standard posts require holes dug to a depth of at least 500mm to 600mm, filled with a 15–20 MPa concrete mix. Disreputable contractors often dig shallow 300mm holes, causing the fence to lean or sag after heavy summer rains.

• Inspect Cut Edge Protection: If installers cut mesh panels on-site to fit tight spaces, ensure they treat raw steel edges with cold galvanizing zinc spray before mounting. Unfinished raw cuts will turn into rust stains within months.

• Verify Wire Gauge with Calipers: Confirm that you receive the exact wire thickness specified in your contract (e.g., 4mm core). Cheaper 2.8mm panels look similar to 4mm options but bend far more easily under weight.

• Demand Anti-Tamper Hardware: Panels should be mounted using break-off shear nuts or internal cup-square bolts. Standard hex bolts can be easily unbolted from the outside using a standard socket wrench.
